VK702N 8-channel Ethernet 24-bit data acquisition card

                                                                                           VK702N Ethernet capture card

    VK702N is an Ethernet type high-speed 24-bit data acquisition card. It features true differential input, 8-channel synchronous acquisition, sampling accuracy of up to 24-bit, 50 ksps sampling rate, and 16 times precision pre gain. Using multiple high-precision 24-bit ADC units, this product has the advantages of high-speed, high-resolution, high-precision, ultra-low noise, high common mode rejection ratio, wide measurement range, low temperature drift, and is suitable for various occasions of precision high-speed acquisition.

Applications

*Weak signal measurement collection            *Low noise data collection
*Ethernet networking measurement system   *High-impedance differential signal measurement

Port diagram

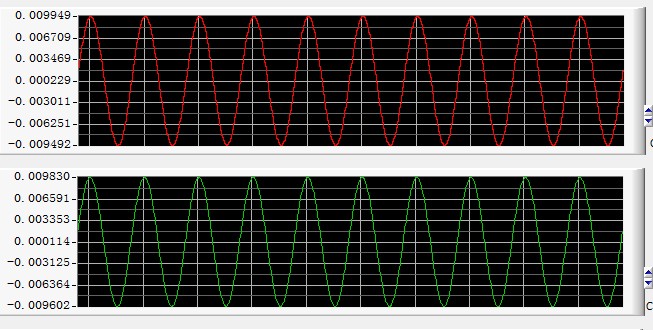

The waveform of 20mV sine wave was collected

The distributed software data collection is saved as EXCLE file

Collection card software description

    VK702N Ethernet data acquisition card Can work in WIN11 / Win10 / Windows 7, such as LINUX commonly used operating systems, and provide a Python, VB, VC, c #, c + + Builder, VB, Delphi, Labview/Labwindows, such as commonly used Matlab programming language called dynamic link library,
Programming function interface simple and easy to use, easy to write applications that provide a Python, VB, VC, c #, c + + Builder, VB, Delphi, Labwindows/Labview and Matlab routines, etc.

AD analog input function

*AD type: Bipolar 24 bits (Bit) *Sampling rate: 8 channels total 400k sampling rate, 50K samples per second per channel

*Input impedance: 10K ohms *Voltage input range: 4 channels ±20mV ~ ±10V 4 range options

DA analog output function

*Number of channels: 1 channel 10 bits (Bit), output voltage range (OutputRange): 0-3.3V

DI digital input and output function

*Number of channels: 4, compatible level voltage: +5V or +3.3V

PWM function

*Number of channels: 2 independent PWM adjustable 1~100khz range, 0.0~1.0 duty cycle adjustable

Counting function

*Pulse counting measurement: 1 way, the high level is 3.3V or 5V

Product Size

Capture card size 112mm (length) * 80mm (width) * 23mm (height)

Packing size: 150 (length) * 150 (width) * 50mm (height)

Weight: 200 grams

Parts List

1. Capture card*1

2. RJ45 standard 1.5m shielded network cable

3. USB high-speed data cable (with magnetic ring) 1.5m oxygen-free copper network cable*1

4. Data packages such as drivers and routines (download from a network disk or send via email)
